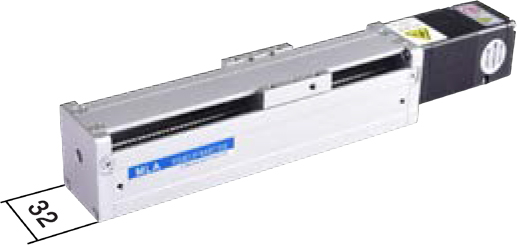

MLA28系列微型电缸

MLA28系列微型具有电缸噪音低,节能,干净,高刚性,抗冲击力,长寿命,操作维护简单。长期工作,并且实现高强度,高速度,高精度定位,运动平稳,低噪音。所以可以广泛的应用在造纸行业,化工行业,汽车行业,电子行业,机械自动化行业,焊接行业等。
● 一体化设计,安装便捷
● 结构紧凑,本体宽度32mm
● 螺纹丝杆/滚珠丝杆可选
● 集成式步进伺服电机可选
品牌: MOONS'

* 订单金额满100元免运费

支付方式

买家保护:
产品在购买后一年内如发生质量问题,可免费换货。 了解更多

  随着自动化设备行业生产技术的不断提高,微型电缸应运而生。微型电缸作为一种现代化、高效率的执行器件,被广泛应用于工业自动化系统中。微型电缸体积小巧,具备快速、精准的动作特点,可替代传统气动和液压执行器,为工业生产线的运行提供了更加可靠、高效的解决方案。微型电缸的工作原理是将电能转换为机械能。当电源接通后,电机驱动传动机构开始工作,通过丝杆或滑块等方式,将旋转运动转化为直线运动。控制系统可以精确控制微型电缸的推力、速度和位置,以满足不同应用的需求。
  MOONS'致力于为客户提供质量稳定、可靠的一体化解决方案。凭借优秀的产品品质,高水平的应用技术以及快速灵活的服务,帮助客户缩短新品研发的周期和批量生产过程中系统集成的时间(人工成本),从而降低综合成本。

产品特点

结构紧凑

  微型电缸采用直接驱动的设计,取消了传统缸的气源设备,减少了能源的损耗。同时,微型电缸的结构也比较简单,半封闭设计,易于安装和维护,降低了使用成本。

闭环控制,精准定位

  创新性地将伺服控制技术融入步进电机之中,创造出具有全新优异性能表现的一体化闭环运动控制终端。实现精准的位置控制和速度调节,使得其运动更为稳定、可靠。此外,微型电缸的响应速度也很快,可在毫秒级别内完成对位置的调整,有助于提高生产效率和工作精度。
闭环控制,精准定位
配置丰富

  提供多种尺寸规格,满足不同的应用场合和不同的安装空间要求。提供导程丰富的螺纹丝杠和滚珠丝杠选项,恒力消间隙技术-让螺纹丝杆满足高精度的应用要求。驱动可以选择开环步进电机、闭环步进电机、伺服电机等。
配置丰富
配置丰富

MLA28 系列

· 一体化设计,安装便捷
· 结构紧凑,本体宽度32mm
· 螺纹丝杠/ 滚珠丝杠可选
· 集成式步进伺服电机可选
MLA28 系列

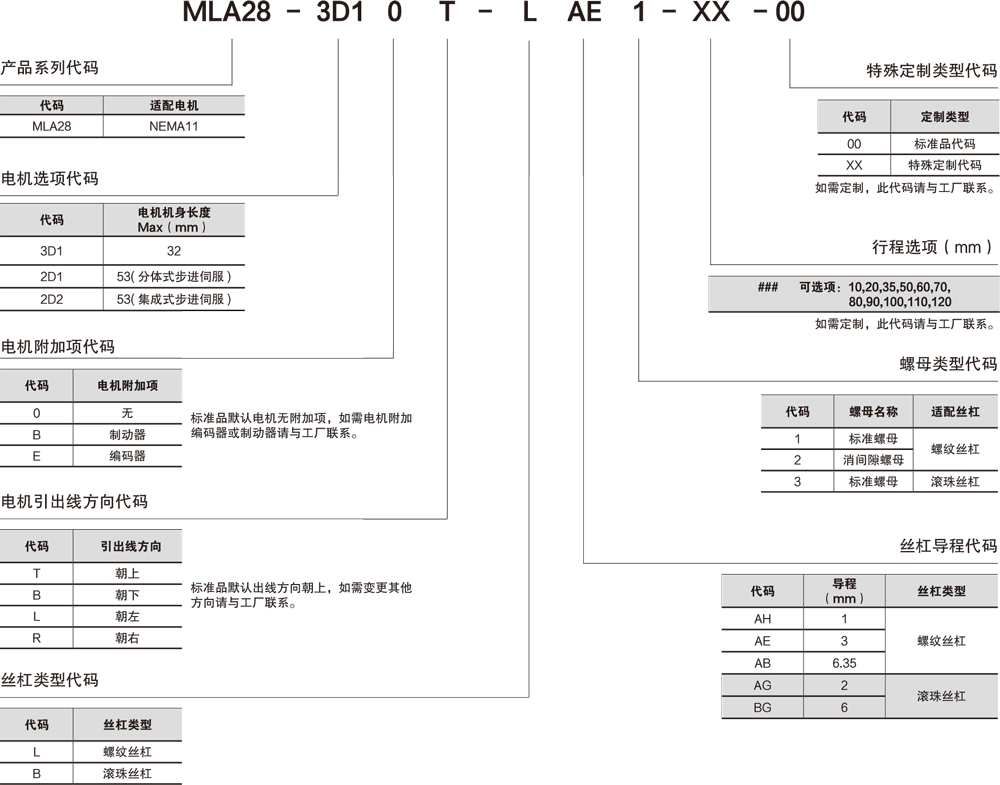

订购型号

订购型号

技术参数

产品系列 最大行程
(mm)
丝杠类型 重复精度
(mm)
导程代码 导程
(mm)
最高速度
(mm/s)
最大负载(kg)
电机:LE111S
最大负载(KG)
电机:TSM11Q-2RM
和AM11RS2DMA
水平使用 垂直使用 水平使用 垂直使用
MLA28 120 螺纹丝杠 标准螺母:±0.05
消间隙螺母:±0.02
AH 1 10 3 2 3 2
AE 3 30 3 2 3 2
AB 6.35 6.35 3 2 3 2
滚珠丝杠 标准螺母:±0.01 AG 2 20 1.8 1.3 2 1.5
BG 6 60 3 1.4 3 2

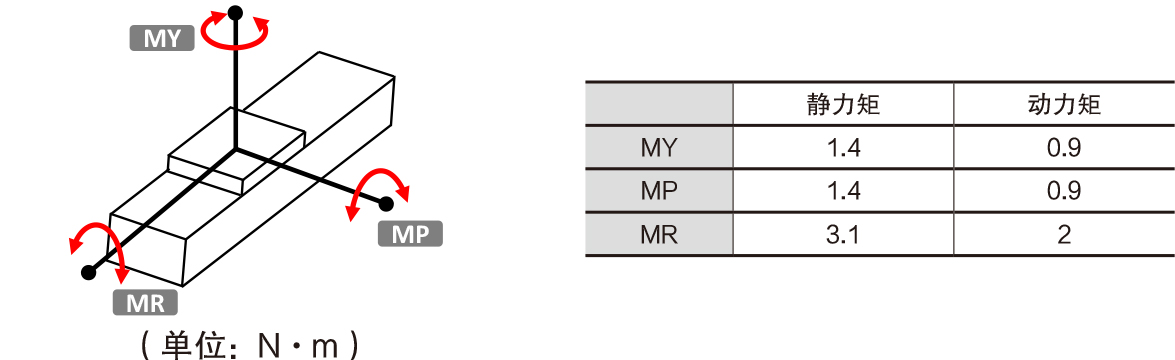

力矩参数

力矩参数

比较 型号名称 价格(未税)
MLA28-2D10T-BAG3-10-00
MLA28-2D10T-BAG3-20-00
MLA28-2D10T-BAG3-35-00
MLA28-2D10T-BAG3-50-00
MLA28-2D10T-BAG3-60-00
MLA28-2D10T-BAG3-70-00
MLA28-2D10T-BAG3-80-00
MLA28-2D10T-BAG3-90-00
MLA28-2D10T-BAG3-100-00
MLA28-2D10T-BAG3-110-00
MLA28-2D10T-BAG3-120-00
MLA28-2D10T-BBG3-10-00
MLA28-2D10T-BBG3-20-00
MLA28-2D10T-BBG3-35-00
MLA28-2D10T-BBG3-50-00
MLA28-2D10T-BBG3-60-00
MLA28-2D10T-BBG3-70-00
MLA28-2D10T-BBG3-80-00
MLA28-2D10T-BBG3-90-00
MLA28-2D10T-BBG3-100-00
MLA28-2D10T-BBG3-110-00
MLA28-2D10T-BBG3-120-00
MLA28-2D20T-BAG3-20-00
MLA28-2D20T-BAG3-50-00
MLA28-2D20T-BAG3-70-00
MLA28-2D20T-BAG3-80-00
MLA28-2D20T-BAG3-100-00
MLA28-2D20T-BAG3-110-00
MLA28-2D20T-BBG3-20-00
MLA28-2D20T-BBG3-50-00
MLA28-2D20T-BBG3-70-00
MLA28-2D20T-BBG3-80-00
MLA28-2D20T-BBG3-100-00
MLA28-2D20T-BBG3-110-00
MLA28-3D10T-BAG3-10-00
MLA28-3D10T-BAG3-20-00
MLA28-3D10T-BAG3-35-00
MLA28-3D10T-BAG3-50-00
MLA28-3D10T-BAG3-60-00
MLA28-3D10T-BAG3-70-00
MLA28-3D10T-BAG3-80-00
MLA28-3D10T-BAG3-90-00
MLA28-3D10T-BAG3-100-00
MLA28-3D10T-BAG3-110-00
MLA28-3D10T-BAG3-120-00
MLA28-3D10T-BBG3-10-00
MLA28-3D10T-BBG3-20-00
MLA28-3D10T-BBG3-35-00
MLA28-3D10T-BBG3-50-00
MLA28-3D10T-BBG3-60-00
MLA28-3D10T-BBG3-70-00
MLA28-3D10T-BBG3-80-00
MLA28-3D10T-BBG3-90-00
MLA28-3D10T-BBG3-100-00
MLA28-3D10T-BBG3-110-00
MLA28-3D10T-BBG3-120-00
MLA28-2D10T-LAH1-10-00
MLA28-2D10T-LAH1-20-00
MLA28-2D10T-LAH1-35-00
MLA28-2D10T-LAH1-50-00
MLA28-2D10T-LAH1-60-00
MLA28-2D10T-LAH1-70-00
MLA28-2D10T-LAH1-80-00
MLA28-2D10T-LAH1-90-00
MLA28-2D10T-LAH1-100-00
MLA28-2D10T-LAH1-110-00
MLA28-2D10T-LAH1-120-00
MLA28-2D10T-LAH2-10-00
MLA28-2D10T-LAH2-20-00
MLA28-2D10T-LAH2-35-00
MLA28-2D10T-LAH2-50-00
MLA28-2D10T-LAH2-60-00
MLA28-2D10T-LAH2-70-00
MLA28-2D10T-LAH2-80-00
MLA28-2D10T-LAH2-90-00
MLA28-2D10T-LAH2-100-00
MLA28-2D10T-LAH2-110-00
MLA28-2D10T-LAH2-120-00
MLA28-2D10T-LAE1-10-00
MLA28-2D10T-LAE1-20-00
MLA28-2D10T-LAE1-35-00
MLA28-2D10T-LAE1-50-00
MLA28-2D10T-LAE1-60-00
MLA28-2D10T-LAE1-70-00
MLA28-2D10T-LAE1-80-00
MLA28-2D10T-LAE1-90-00
MLA28-2D10T-LAE1-100-00
MLA28-2D10T-LAE1-110-00
MLA28-2D10T-LAE1-120-00
MLA28-2D10T-LAE2-10-00
MLA28-2D10T-LAE2-20-00
MLA28-2D10T-LAE2-35-00
MLA28-2D10T-LAE2-50-00
MLA28-2D10T-LAE2-60-00
MLA28-2D10T-LAE2-70-00
MLA28-2D10T-LAE2-80-00
MLA28-2D10T-LAE2-90-00
MLA28-2D10T-LAE2-100-00
MLA28-2D10T-LAE2-110-00
MLA28-2D10T-LAE2-120-00
MLA28-2D10T-LAB1-10-00
MLA28-2D10T-LAB1-20-00
MLA28-2D10T-LAB1-35-00
MLA28-2D10T-LAB1-50-00
MLA28-2D10T-LAB1-60-00
MLA28-2D10T-LAB1-70-00
MLA28-2D10T-LAB1-80-00
MLA28-2D10T-LAB1-90-00
MLA28-2D10T-LAB1-100-00
MLA28-2D10T-LAB1-110-00
MLA28-2D10T-LAB1-120-00
MLA28-2D10T-LAB2-10-00
MLA28-2D10T-LAB2-20-00
MLA28-2D10T-LAB2-35-00
MLA28-2D10T-LAB2-50-00
MLA28-2D10T-LAB2-60-00
MLA28-2D10T-LAB2-70-00
MLA28-2D10T-LAB2-80-00
MLA28-2D10T-LAB2-90-00
MLA28-2D10T-LAB2-100-00
MLA28-2D10T-LAB2-110-00
MLA28-2D10T-LAB2-120-00
MLA28-2D20T-LAH1-20-00
MLA28-2D20T-LAH1-50-00
MLA28-2D20T-LAH1-70-00
MLA28-2D20T-LAH1-80-00
MLA28-2D20T-LAH1-100-00
MLA28-2D20T-LAH1-110-00
MLA28-2D20T-LAH2-20-00
MLA28-2D20T-LAH2-50-00
MLA28-2D20T-LAH2-70-00
MLA28-2D20T-LAH2-80-00
MLA28-2D20T-LAH2-100-00
MLA28-2D20T-LAH2-110-00
MLA28-2D20T-LAE1-20-00
MLA28-2D20T-LAE1-50-00
MLA28-2D20T-LAE1-70-00
MLA28-2D20T-LAE1-80-00
MLA28-2D20T-LAE1-100-00
MLA28-2D20T-LAE1-110-00
MLA28-2D20T-LAE2-20-00
MLA28-2D20T-LAE2-50-00
MLA28-2D20T-LAE2-70-00
MLA28-2D20T-LAE2-80-00
MLA28-2D20T-LAE2-100-00
MLA28-2D20T-LAE2-110-00
MLA28-2D20T-LAB1-20-00
MLA28-2D20T-LAB1-50-00
MLA28-2D20T-LAB1-70-00
MLA28-2D20T-LAB1-80-00
MLA28-2D20T-LAB1-100-00
MLA28-2D20T-LAB1-110-00
MLA28-2D20T-LAB2-20-00
MLA28-2D20T-LAB2-50-00
MLA28-2D20T-LAB2-70-00
MLA28-2D20T-LAB2-80-00
MLA28-2D20T-LAB2-100-00
MLA28-2D20T-LAB2-110-00
MLA28-3D10T-LAH1-10-00
MLA28-3D10T-LAH1-20-00
MLA28-3D10T-LAH1-35-00
MLA28-3D10T-LAH1-50-00
MLA28-3D10T-LAH1-60-00
MLA28-3D10T-LAH1-70-00
MLA28-3D10T-LAH1-80-00
MLA28-3D10T-LAH1-90-00
MLA28-3D10T-LAH1-100-00
MLA28-3D10T-LAH1-110-00
MLA28-3D10T-LAH1-120-00
MLA28-3D10T-LAH2-10-00
MLA28-3D10T-LAH2-20-00
MLA28-3D10T-LAH2-35-00
MLA28-3D10T-LAH2-50-00
MLA28-3D10T-LAH2-60-00
MLA28-3D10T-LAH2-70-00
MLA28-3D10T-LAH2-80-00
MLA28-3D10T-LAH2-90-00
MLA28-3D10T-LAH2-100-00
MLA28-3D10T-LAH2-110-00
MLA28-3D10T-LAH2-120-00
MLA28-3D10T-LAE1-10-00
MLA28-3D10T-LAE1-20-00
MLA28-3D10T-LAE1-35-00
MLA28-3D10T-LAE1-50-00
MLA28-3D10T-LAE1-60-00
MLA28-3D10T-LAE1-70-00
MLA28-3D10T-LAE1-80-00
MLA28-3D10T-LAE1-90-00
MLA28-3D10T-LAE1-100-00
MLA28-3D10T-LAE1-110-00
MLA28-3D10T-LAE1-120-00
MLA28-3D10T-LAE2-10-00
MLA28-3D10T-LAE2-20-00
MLA28-3D10T-LAE2-35-00
MLA28-3D10T-LAE2-50-00
MLA28-3D10T-LAE2-60-00
MLA28-3D10T-LAE2-70-00
MLA28-3D10T-LAE2-80-00
MLA28-3D10T-LAE2-90-00
MLA28-3D10T-LAE2-100-00
MLA28-3D10T-LAE2-110-00
MLA28-3D10T-LAE2-120-00
MLA28-3D10T-LAB1-10-00
MLA28-3D10T-LAB1-20-00
MLA28-3D10T-LAB1-35-00
MLA28-3D10T-LAB1-50-00
MLA28-3D10T-LAB1-60-00
MLA28-3D10T-LAB1-70-00
MLA28-3D10T-LAB1-80-00
MLA28-3D10T-LAB1-90-00
MLA28-3D10T-LAB1-100-00
MLA28-3D10T-LAB1-110-00
MLA28-3D10T-LAB1-120-00
MLA28-3D10T-LAB2-10-00
MLA28-3D10T-LAB2-20-00
MLA28-3D10T-LAB2-35-00
MLA28-3D10T-LAB2-50-00
MLA28-3D10T-LAB2-60-00
MLA28-3D10T-LAB2-70-00
MLA28-3D10T-LAB2-80-00
MLA28-3D10T-LAB2-90-00
MLA28-3D10T-LAB2-100-00
MLA28-3D10T-LAB2-110-00
MLA28-3D10T-LAB2-120-00

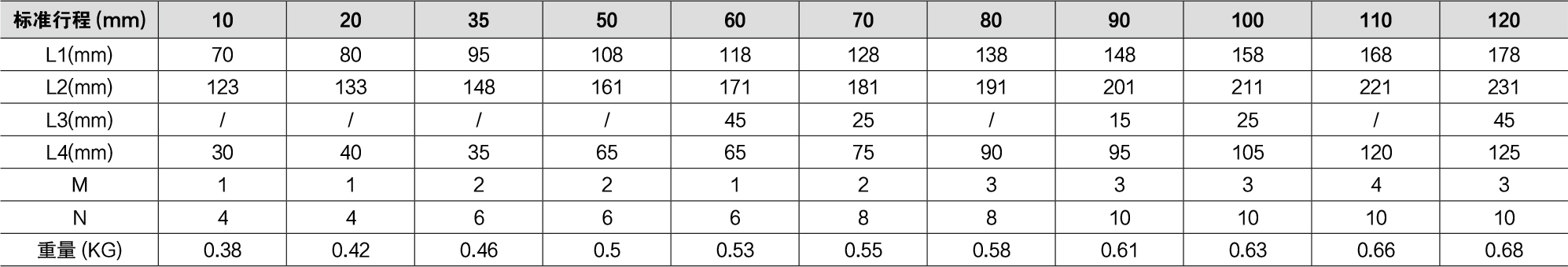

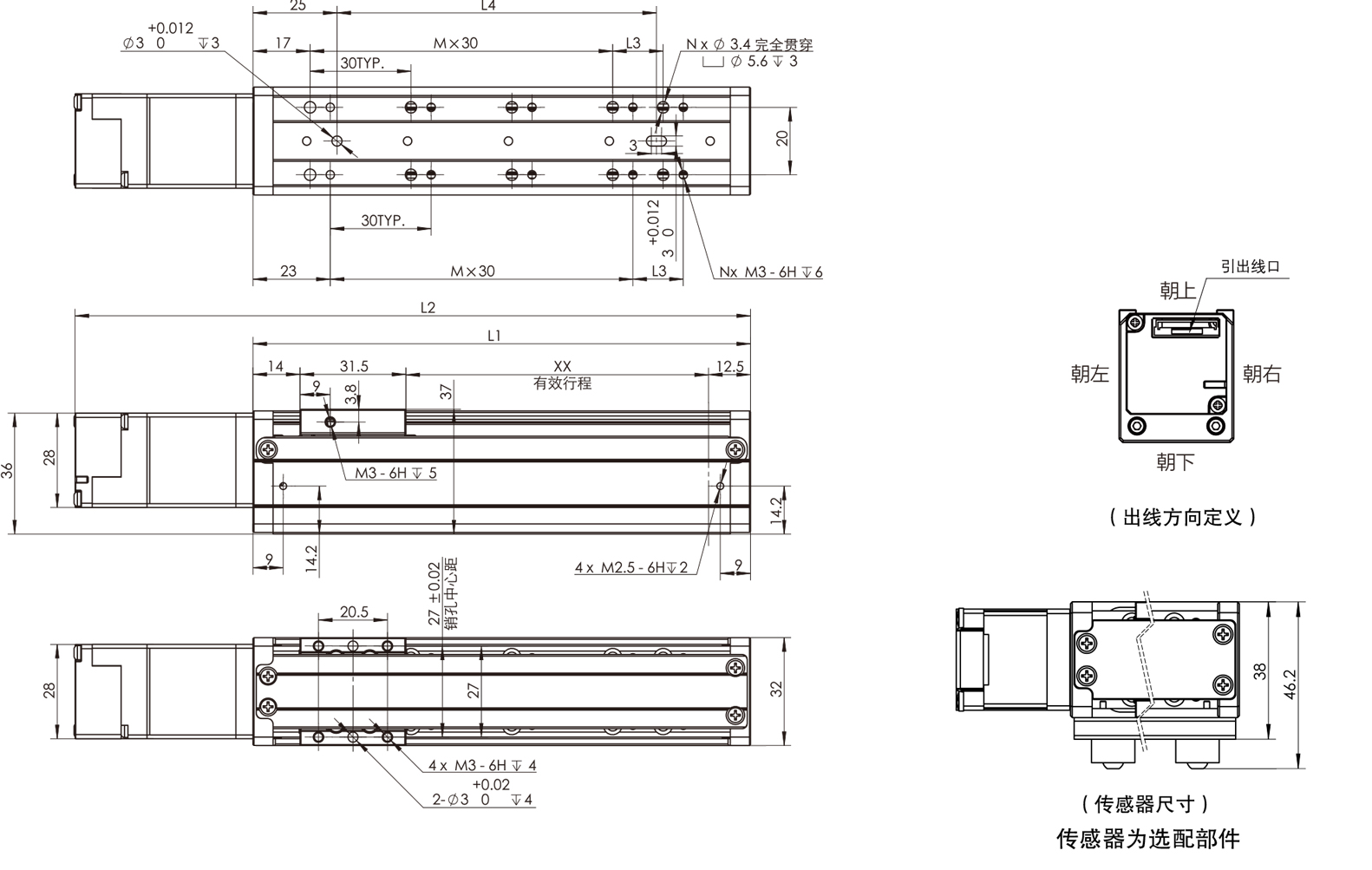

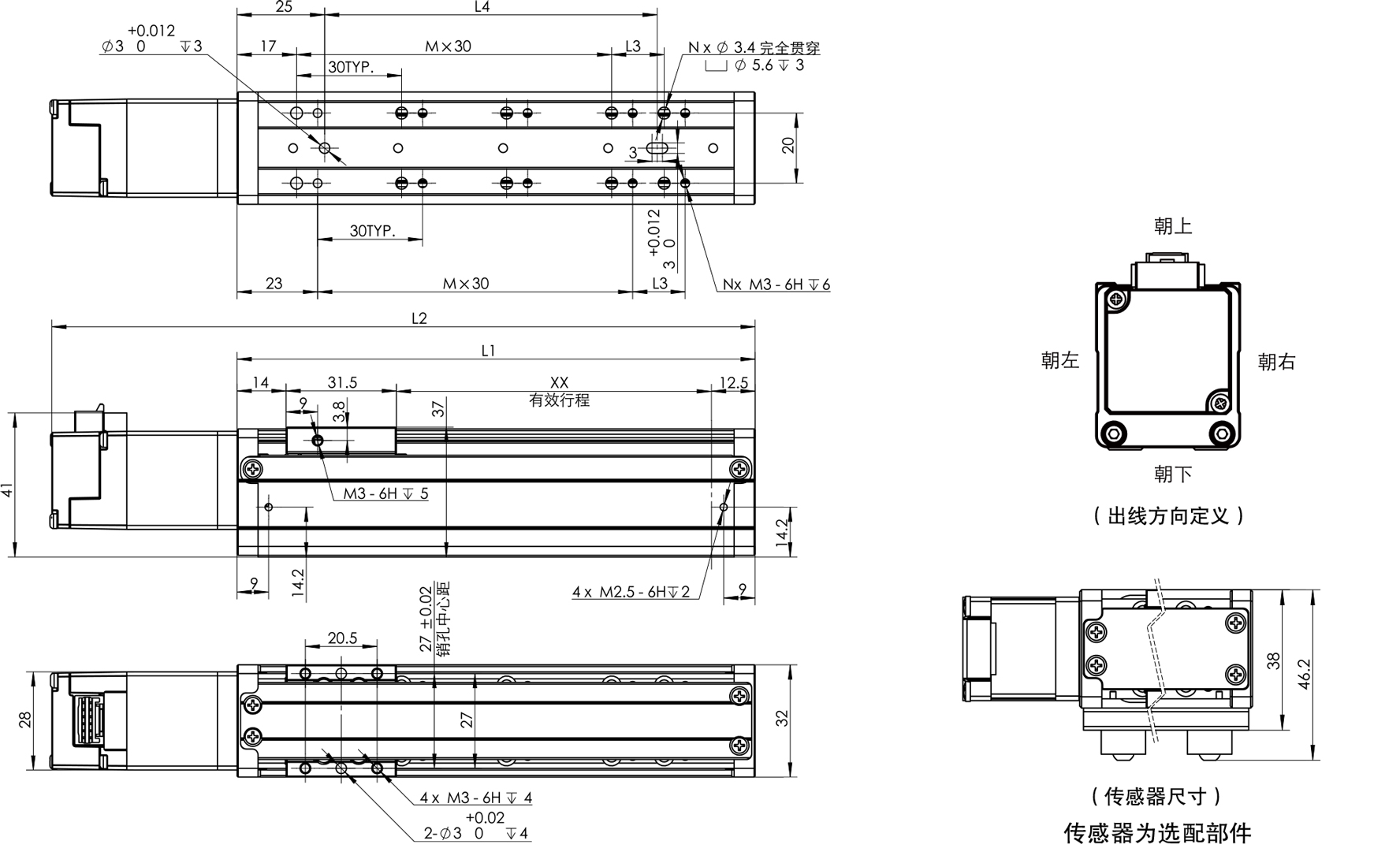

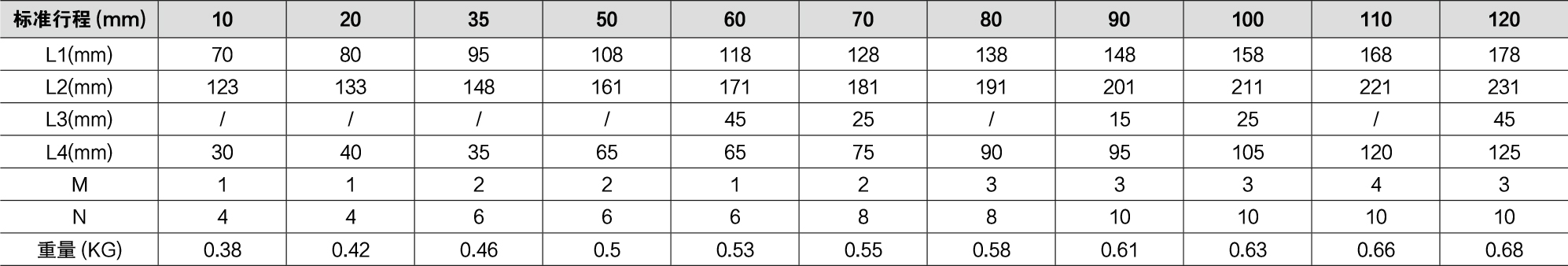

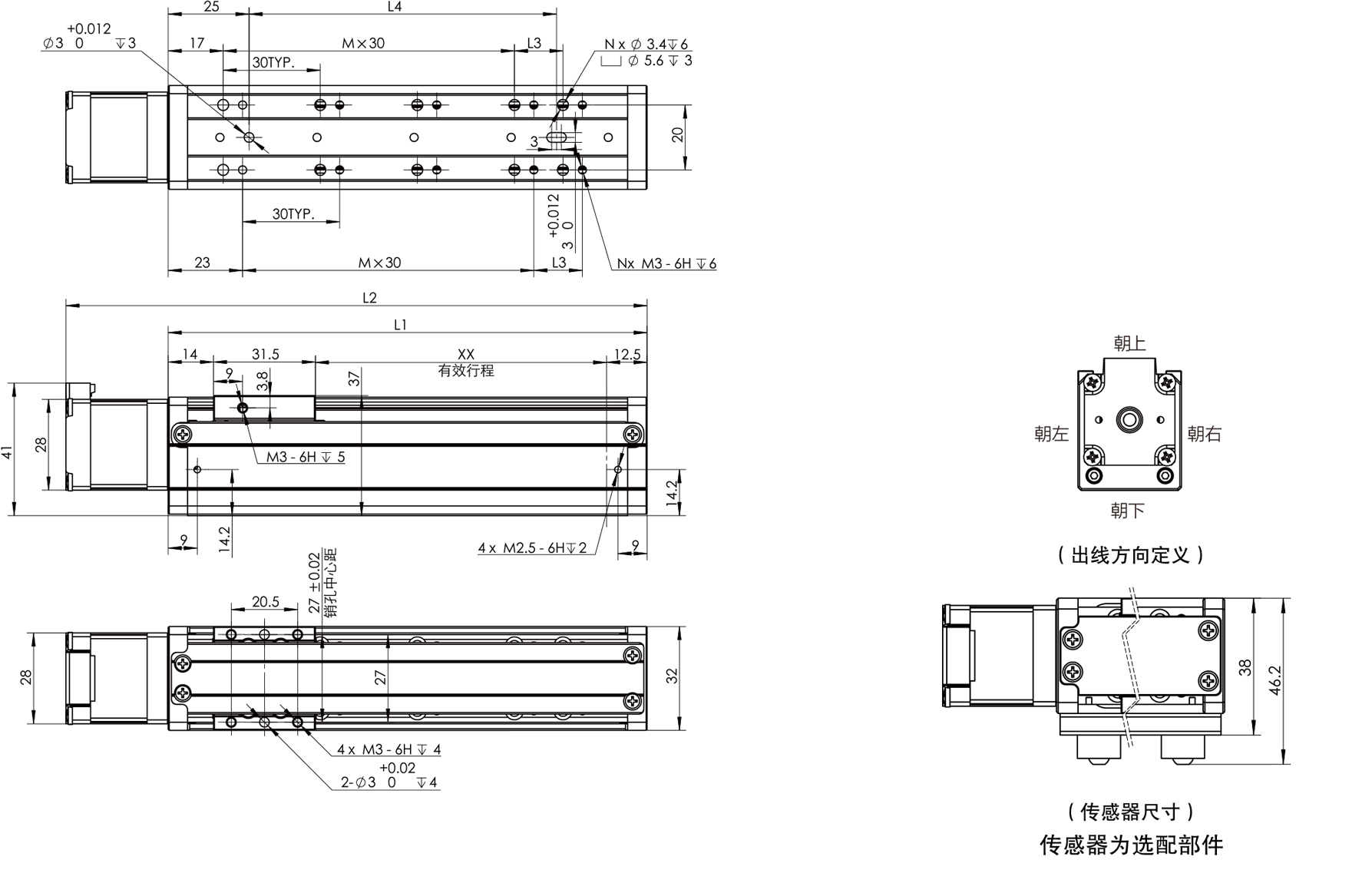

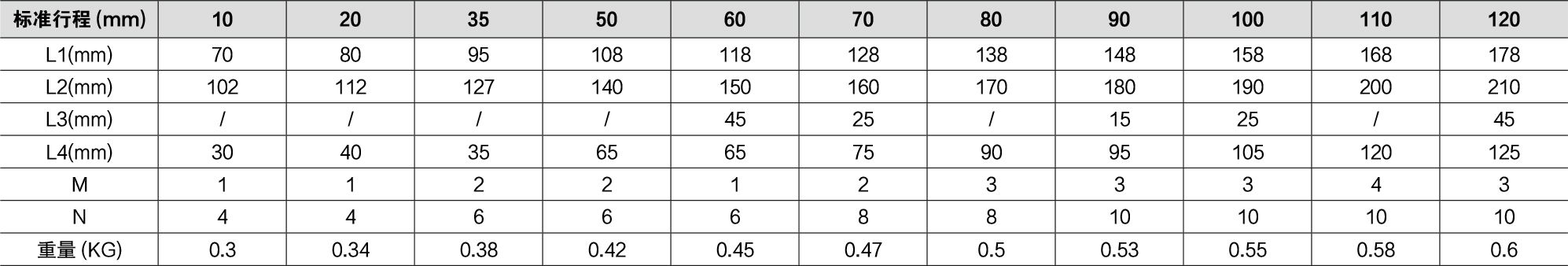

2D尺寸图
